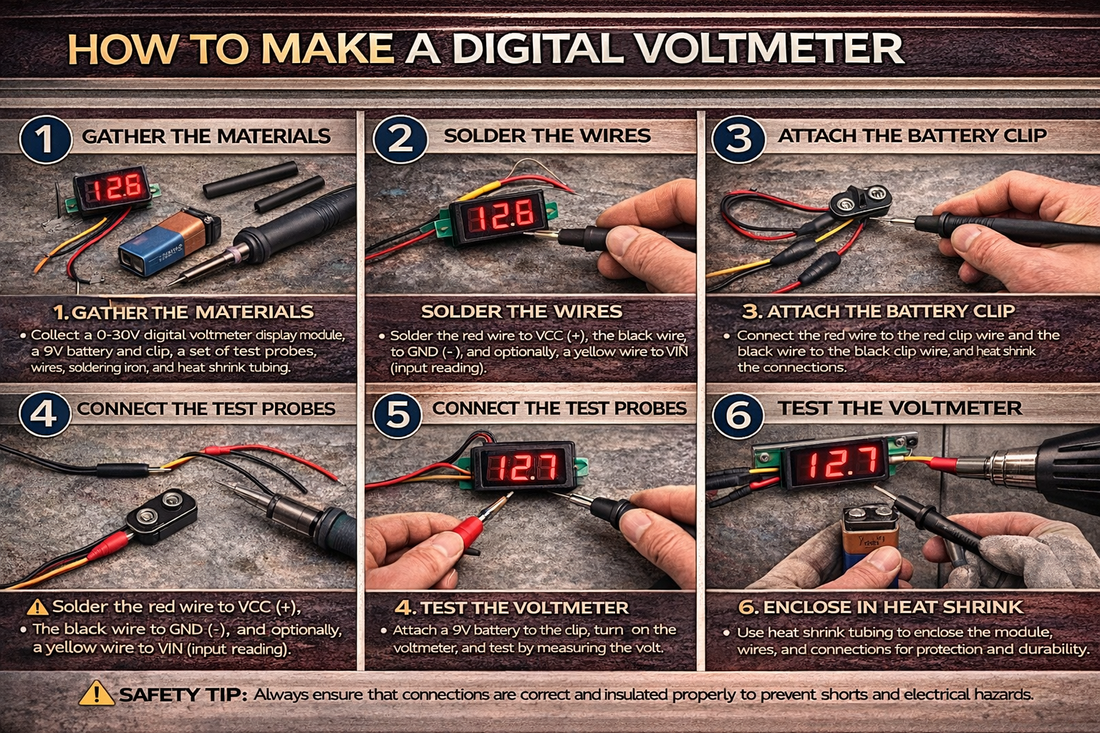

How To Make A Digital Voltmeter
Any maker will be excited to follow the steps in this tutorial and the result is going to be an extremely educative and fun project. One of the joys of experience is when you watch the figures flash on the screen for the first time and you realize that "oh I did it!" In this blog, you will get a step-by-step guide on how to build your own voltmeter which includes some basic stuff as well as some tricks that I have learned in the wise.
Understanding Voltmeters
A voltmeter is a multimeter instrument mainly used to measure the electric potential difference, or else the voltage between two points in a circuit. Digital voltmeters are different in that they display the reading as a number on an LCD or LED display, while analog voltmeters are displayed as electrical currents. As a leading Electrical Power Tools Manufacturer in India, we provide advanced testing and measuring equipment designed for accurate electrical diagnostics and industrial applications.
Components You'll Need
Here is the required material you should have in hand, before you start working:
- Microcontroller (e.g., Arduino Uno or a similar board)
- 10kΩ resistors
- 1kΩ resistors
- Digital display (LCD or 7-segment display)
- Breadboard or PCB
- Connecting wires
- Potentiometer (if using an LCD screen for contrast adjustment)
- Power supply (battery or DC power adapter)
Step-by-Step Construction
I have worked with digital voltmeters lots of times over the years, and the steps were also born out of the exercises that have been most enlightening. Hence, if you are careful enough and follow the necessary procedures, you will build your device successfully. For accurate testing and troubleshooting, using a reliable Digital Multimeter can help ensure precise electrical measurements and safe operation.
Step 1: Setting Up the Microcontroller
- Start by writing the microcontroller code. This can, for example, be uploading the program via the USB-Serial adapter, use a computer to connect the Arduino and write the sketch with the ArduinoIDE. (I will show you some basic code broken down into the analog reading case step by step.) The code for reading the voltage off an analog pin and displaying this digital value as a stable reading can be found in the Analog->AnalogInput example of the IDE.
- Place the microcontroller on the breadboard or PCB to make it a standardized installation.
Step 2: Building the Voltage Divider
The next level of the voltage is the divider circuit, a circuit with the following voltage and microcontroller as input and output.
- Fit the Resistors Together: As for the 10kΩ щnd 1kΩ resistor current, make the most elementary voltage divider circuit by connecting one end of the 10kΩ resistor to the positive voltage point.
- Focus on the Ground: The one end of the 1kΩ resistor is the one which you are grounding.
- Gather the Physical Entity: The place where the two resistors connect will be the divided voltage, which will be led to the microcontroller through the analog input pin.
Step 3: Connecting the Display
- Connect the LCD to your microcontroller if you are using one on the circuit. If you need., you can adjust the contrast by turning the potentiometer.
-
In the case of a 7-segment display, make sure each segment is maintained correctly, checking the active low or high configuration inside the circuit.
Step 4: Powering the Circuit
You need to get a battery or a DC adapter for power:
- Make sure that the voltage level is the same as your microcontroller as well as other required components.
- Positive supply should be connected to the positive side of the breadboard, and negative supply should be connected to the ground rail of the breadboard PCB.
Programming Your Digital Voltmeter
By virtue of my familiarity and adherence to technology advancements, the most vital factor to obtain a precise measure is compliant writing. A layout of the code that one might follow can be described. As a trusted Cable Tie Cutter Manufacturer & Supplier in India, we also focus on delivering precision tools that support safe and efficient cable management across industrial and electrical applications.
- Read Analog Data: Use analogRead() to read the voltage data.
- Convert to Voltage: With the formula: Voltage = (AnalogValue * ReferenceVoltage) / MaxAnalogValue.
-
Turn On/Off the Display: Add the necessary software so the measured voltage is sent to the display, while providing regular refresh cycles to keep the readings updated.
Calibrating Your Voltmeter
It is only after you have constructed it do the tweaks to make sure it is working properly:
- Test the reading with a reliable voltmeter and make changes to the calculation as per the feedback received.
-
Amend the voltage-divider setup if necessary to minimize error.
To transform the relatively straightforward digital voltmeter project into an engaging blend of both hands-on practice and theoretical understanding, not only had I had to do it right, but experimentation also had to be part of it. In my built projects, I got immense satisfaction from seeing my DIY instruments in real life, giving accurate data and thus, improving project outcomes. This guide not only should act as a steady footing that offers you the impetus to go further, beyond modifications and even integrating further measurements like current or resistance for the multimeter to be very comprehensive.
Through my trials with various projects, I have realized that projects bring personal insights and allow me to challenge myself to perfect my skills and elucidate my knowledge of the circuits in the long run. Accept the process and also dare to conduct experiments beyond what I have suggested here.
