Hydraulic Crimping Tool Use
The hydraulic crimping tool is necessary for electronic wires, cables, and terminals at places like industrial, commercial, and residential settings. A powerful device of this caliber can effectively do a job like this through crimping a cable, wire, or a terminal electric component, and thus in turn, create a secure and reliable connection to the devices. Whether you are a beginner in using hydraulic crimping tool or an expert who is looking to improve his/her skills, this comprehensive guide will give you a walk-through the basics. The intention is that you will receive instructions on the tool's operation and specifics, some helpful practical info, guidelines for maintaining it, and safety instructions.
Understanding Hydraulic Crimping Tools
A hydraulic crimping device works by squeezing a clearly identified crimping die with a hydraulic mechanism which, in turn, firmly joins a cable or wire to a terminal. When the crimp is finished, the highly-endured joint is now capable of bearing the loads, environmental conditions, and mechanical stress. These are essential items in electrical infrastructure as well as telecommunications, transport, and others. As a trusted Crimping Tool Manufacturer in India, we provide durable and high-performance crimping solutions designed for professional industrial and electrical applications.

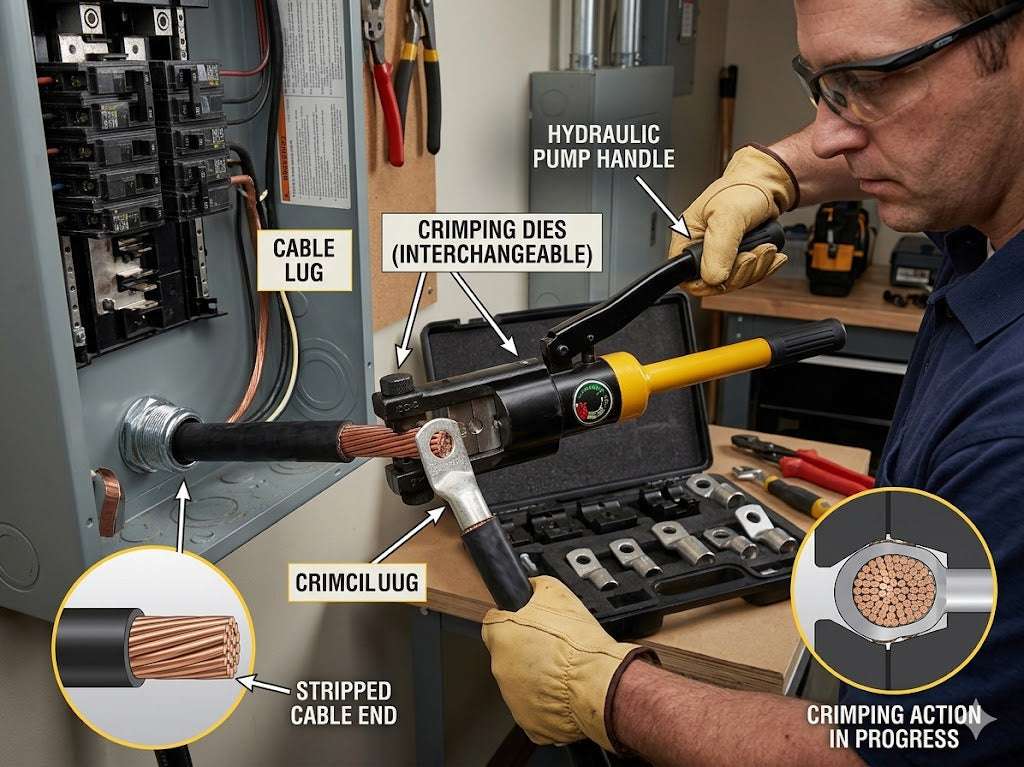

Components of a Hydraulic Crimping Tool
- Pump Handle: The lever for hydraulic pumping operation.
- Hydraulic Cylinder: A cylinder housing a piston which along its length creates the compressive force when it is activated.
- Crimping Head: The foremost part of the tool which houses the interchangeable crimping dies.
- Crimping Dies: These are the parts of the equipment that hold the cable and connector in the crimping process. They can be exchanged or changed out.
- Pressure Release Valve: Depressurizing apparatus made to ease post-crimping operations.
Step-by-Step Guide to Using a Hydraulic Crimping Tool
The period-by-period manual aims to enable people to have a perfect understanding of using a hydraulic crimping tool for various applications. I have had personal experiences with hydraulic crimp tools. I can only say that when they are used correctly they can be quite efficient and reliable. As a reliable Cable Tie Cutter Manufacturer & Supplier in India, we also provide high-quality cutting tools that ensure clean, safe, and efficient cable tie installation and removal for industrial and electrical applications.
Step 1: Choose the Correct Die
One of the most pressing issues is selecting the die that fits. Like, the connection and size of the cable have to match the die. The parts have multiple extra dies of different sizes.
Step 2: Prepare the Cable
Take off insulation from the cable using a cable stripper and handle the cable with care. Do not remove more than necessary and this left out must fit into the connector without any wires being exposed. Be certain the cable is clean—it has no debris or oil. As a trusted Electrical Power Tools Manufacturer in India, we provide reliable tools and equipment designed for safe, accurate, and efficient electrical installation work.
Step 3: Insert the Cable and Connector
First, insert the stripped end of the cable into the connector. Second, make sure that the connector is tied correctly to the cable. Thirdly, put the assembly in among the crimping dies.
Step 4: Operate the Crimping Tool
- Place the tool over the connecting point and follow the wire through the handle.
- Begin the pumping operation until you feel the hydraulic system apply the pressure, generating distinct sounds and vibrations.
-
Keep pumping on until there is a final snap, preventing any further movement of the dies. You can either feel or visibly see where this connection has completed.
Step 5: Release and Inspect
Turn the pressure release valve so that the hydraulic power is gradually relaxed. The connection was made by this tool so simply remove it and look at it to see if it is damaged. The connection to the crimp should be solid, with no stray strands or offsets at all. For added cable protection and secure sealing in electrical installations, using a high-quality cable gland helps improve safety and durability in industrial applications.
Maintenance Tips
The proper maintenance of a hydraulic crimping tool is a guarantee to the tool's good performance and long life. Here are the tips:
- Clean the tool after every use, getting rid of any metal shavings, dust, or grime.
- Clean and check the hydraulic fluid count as often as you can, and top it back up to the proper level if it has fallen below the correct level, following the manufacturer's user manual.
- Check the crimping dies for wear when needed and replace those that have worn out or are damaged.
- Oil up the joints and screws as per the manufacturer's instructions.
-
Place the tool in a clean and dry spot where it's not going to corrode, rust, or anything of the sort.
Safety Precautions
When handling the hydraulic crimping tools, safety is above all. The following are essential:
- Every work must be done with the correct PPE gear like safety goggles and gloves.
- Be sure that your work is in a place where you can see very well and nothing is in the way.
- Check all components of the tool that they are properly connected before use to ensure they are functioning well or not.
- Do not overcharge or exceed the pressure limit of the tool.
-
Follow the manufacturer's instructions and any relevant industry standards.
Hydraulic crimping tools are the mainstay for secure and effective electrical cable connections. Moreover, you can confidently handle the different crimping tasks in a safe and efficient manner if you take this training. Let me state that based on my experiences I have had with hydraulic crimping tools, in which I have shared knowledge on the proper way to master this remarkable technology that has more to do with best practice, thorough practice, thus avoiding any breakdowns. Your projects will be run faster while at the same time saving all the needed resources. Introduce this awesome tool and use it to improve your next project.
