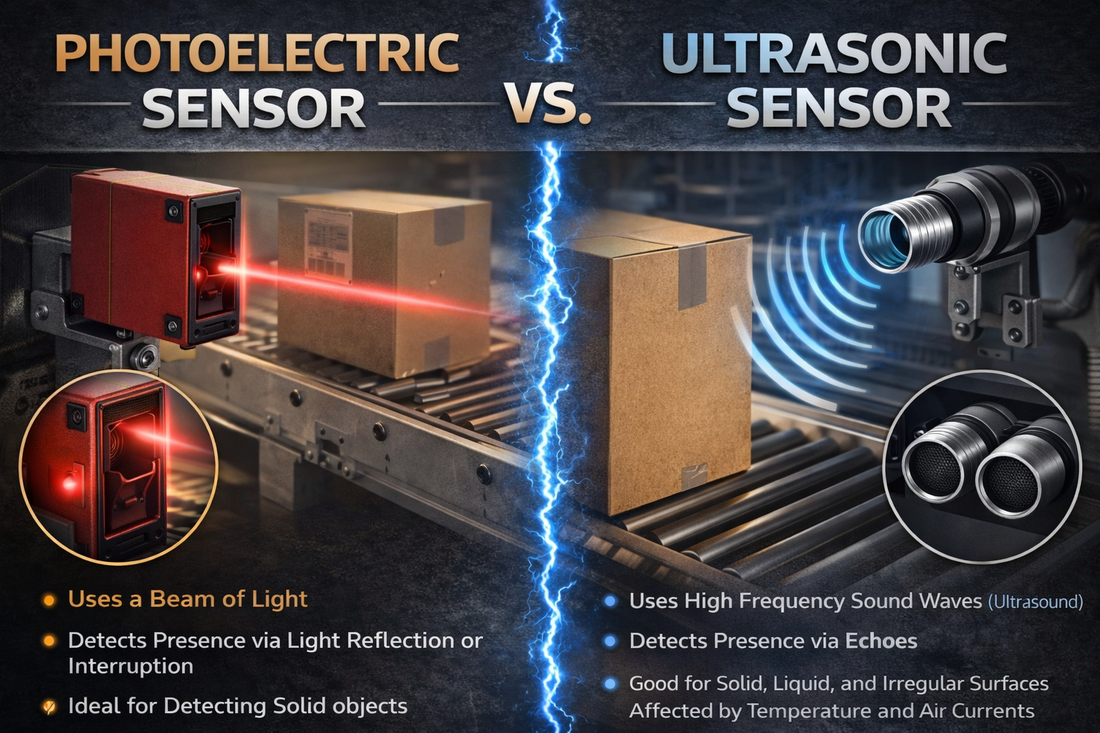

Photoelectric Sensor Vs Ultrasonic Sensor
In the world of automation and industrial processes, sensors are responsible for the oath of clean and efficient systems never to be a problem. The sensors are divergent and meaningful so it has become a somewhat hard task selecting between these two accurate sensors that are currently performing at a very high level.
What is a Photoelectric Sensor?
Photoelectric sensors are controlled devices that recognize or do not sense certain items with the help of a light broadcaster, such as laser or infrared LED and the photoelectric collector. These sensors are remarkably accurate and are able to detect very small objects of one millimeter or even transparent objects such as glass or film, making them widely used in precision systems developed by an Electrical Power Tools Manufacturer in India.
Accordingly, the sensors belong to three main configurations, each with its unique features:
- Through-Beam Sensors: Firstly, they have two split devices - transmitter and receiver. By the beam of light cutting off the sensor from the object, the sensor detects an object.
- Retro-Reflective Sensors: Among these types, only one device with a transmitter and receiver along with a reflector is included. The presence of the object is detected when the laser beam points to the reflector and then turns back to the sensor.
- Diffuse Reflection Sensors: These are single units that produce light beams, catching objects with the light beam that bounces off the objects. They work with a single device that transmits a beam of light that reflects back from the object being detected.
What is an Ultrasonic Sensor?
The feature of ultrasonic sensors is that they metaphorically produce sound waves and interpret the acquired sound waves. This type of process is what allows them to determine the distance to the object, and thus detect its existence. In the circumstances where there is a fluctuation in the light or the material is transparent or reflective, they are used more often, especially in industrial systems designed with input from a Cable Gland Manufacturer & Supplier in India.
Comparison Between Photoelectric and Ultrasonic Sensors
1. Detection Medium
Photoelectric sensors are light-operated, thus they are suitable to precision applications. Nevertheless, they can be affected by environmental conditions such as fog, dust, or ambient light. Still, ultrasonic sensors are sound wave-based, their accuracy is less affected by the clarity of the optical medium, and they can handle more challenging conditions, where light or smoke that might interfere with the photoelectric sensor.
2. Range and Accuracy
Photoelectric sensors can enable small object detections and are fast in turnover when they do it accurately. The range they have depends in great part on the configuration but is in general less than that of ultrasonic sensors. Ultrasonic sensors own a larger range, which makes them accessible for the purposes of detecting objects of relatively larger size, yet they may be at the expense of the accuracy attained by a photoelectric sensor for the detection of smaller objects, especially in systems used alongside solutions from a Cable Tie Manufacturer.
3. Material and Surface Compatibility
Photoelectric sensors might face difficulties when dealing with transparent or shiny objects, but they manage to detect quite well when the target is made of other material but the given surface is smooth. In contrast, ultrasonic sensors are pinpointed among other areas for their great job in the area of catching objects made of clear or transparent as well as having different surface finish, as sound reflections are the weak influence on them.
4. Cost
Most of the time, the photoelectric sensors are more inexpensive than their ultrasonic counterparts, especially if they are used for the basic purpose of detection. However, the total cost-effectiveness is decided by the application and the environment itself.
5. Environmental Conditions
When it comes to the environmental effects of ultrasonic sensors especially in harsh weather conditions such as high temperatures, humidity, or the light changing constantly, ultrasonic sensors would be the most reliable search and locate way than the photoelectric sensing system.
Applications
Photoelectric Sensors
- Systems focusing on the production of exact position
- Systems requiring the presence of an object by means of the conveyor
- Their accuracy in shape and size identification is boosted by the fact that these sensors are really not far.
Ultrasonic Sensors
- Level measurement in tanks or containers.
- The system of parking slots for cars.
-
Engineering to achieve the targets of dust and fog detection.
Between the photoelectric and ultrasonic sensors, the decision relied on the different requirements for each application, environmental conditions, and cost factors among others. The former, photoelectric sensors, are the true representative of high precision in detection, while the latter, ultrasonic sensors, are particularly well-suited to last longer in applications with robustness challenges or with the presence of non-flat surfaces, especially in industrial setups supported by a Crimping Tool Manufacturer in India.
The function of information in choosing the right tools can be optimized by knowing the strong and weak points of each product better.
