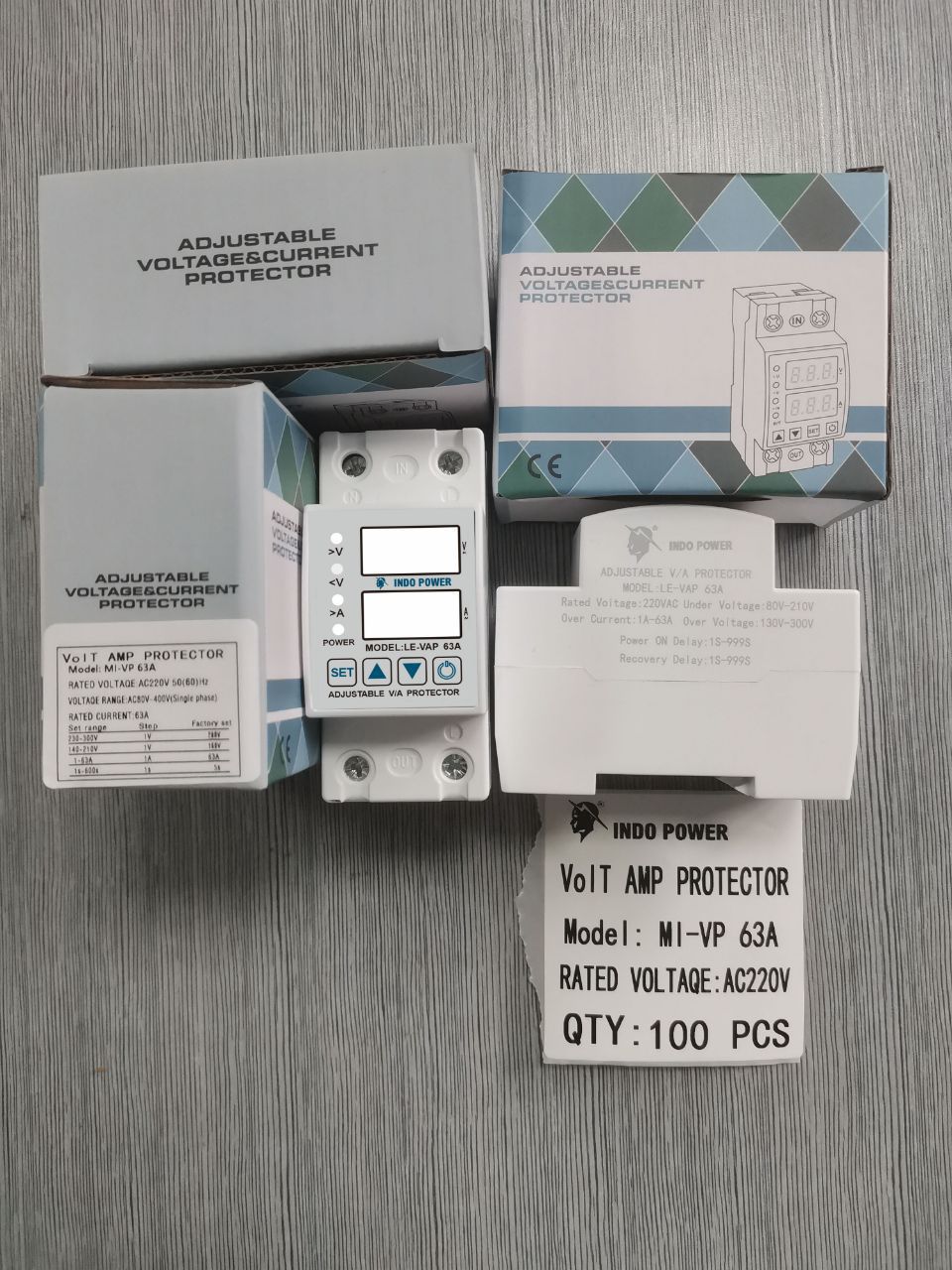

LE-VAP Smart Digital Voltage & Current Protection Relay | Volt Amp Protector (Single Phase 220V)

Shield your sensitive electronics and household appliances from dangerous grid fluctuations with this intelligent Single Phase Voltage & Current Protector. Unlike standard MCBs that only trip on short circuits, this microprocessor-controlled device constantly monitors the line voltage and load current, instantly cutting power if levels go beyond your set safety limits (e.g., unexpected high voltage or current spikes). Once the grid stabilizes, the device automatically reconnects the power after a preset delay, ensuring continuous protection without manual resetting.

 Technical Specifications:
• Model Series: LE-VAP / MI-VP
• Rated Voltage: AC 220V 50/60Hz
• Current Rating Options: 40A, 63A
• Operational Voltage Range: AC 80V - 400V
• Over-Voltage Setting: 230V - 300V (Adjustable)
• Under-Voltage Setting: 140V - 210V (Adjustable)
• Recovery Delay: 1s - 600s (Default ~30s)
• Mounting: DIN Rail
