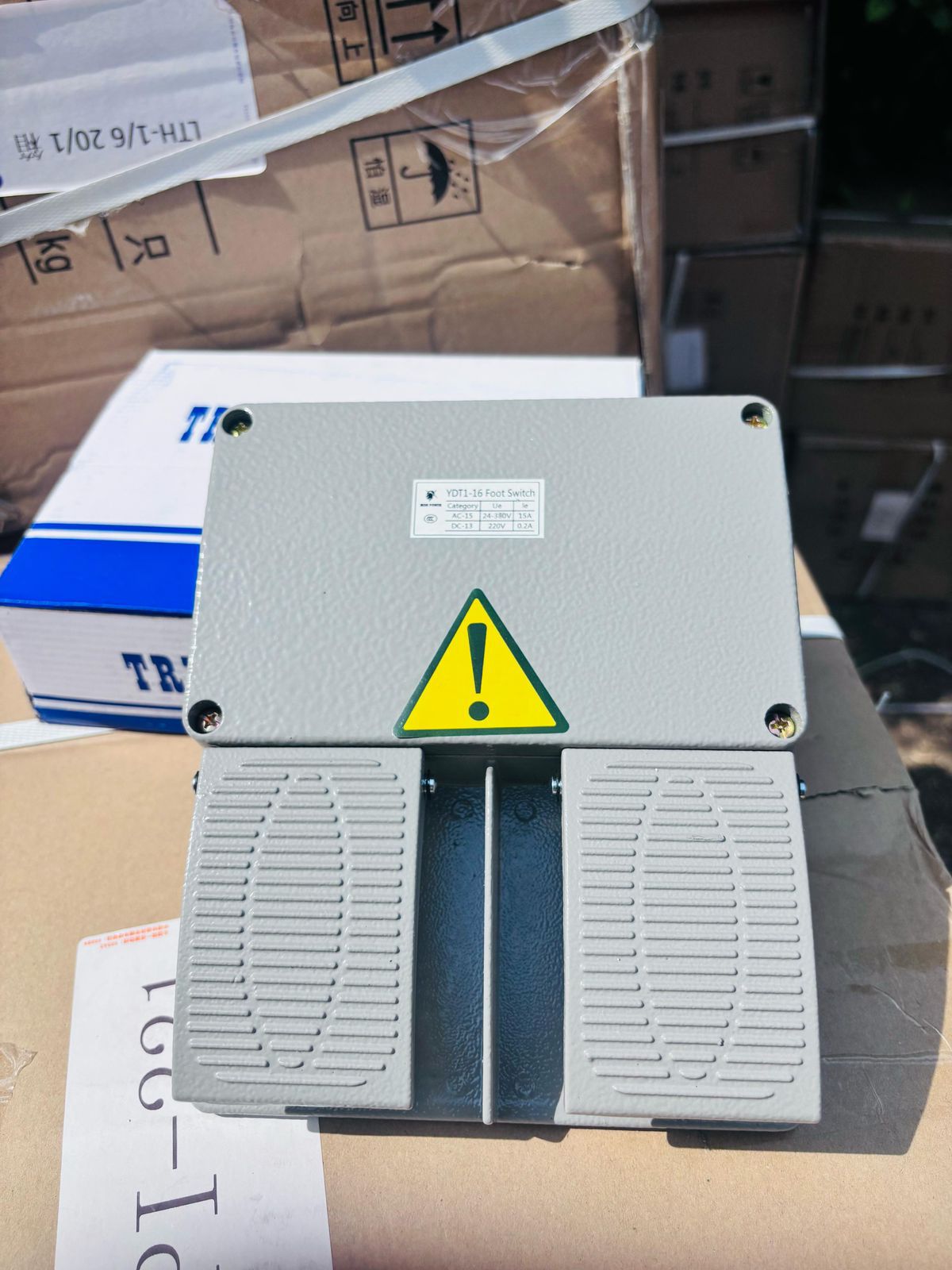

YDT1-16 Dual Pedal Industrial Foot Switch (Metal) 10A/380V

Manage complex multi-step operations like "Forward/Reverse" or "Clamp/Cut" with the Power Plus YDT1-16 Dual Foot Switch. Engineered for "Commercial-Standard" manufacturing environments, this unit integrates two independent treadle switches into a single robust housing, allowing operators to execute distinct commands without moving their feet between different controllers. It is the ideal solution for increasing efficiency on bending machines, automated welders, and dual-action press brakes.

 Technical Specifications:
• Model: YDT1-16
• Configuration: Dual Pedal (Double Treadle)
• Rated Voltage (Ue): 24-380V AC
• Rated Current (Ie): 15A (AC-15)
• DC Rating: 220V / 0.2A (DC-13)
• Material: Metal Alloy (Grey)
• Safety Feature: Central Divider
