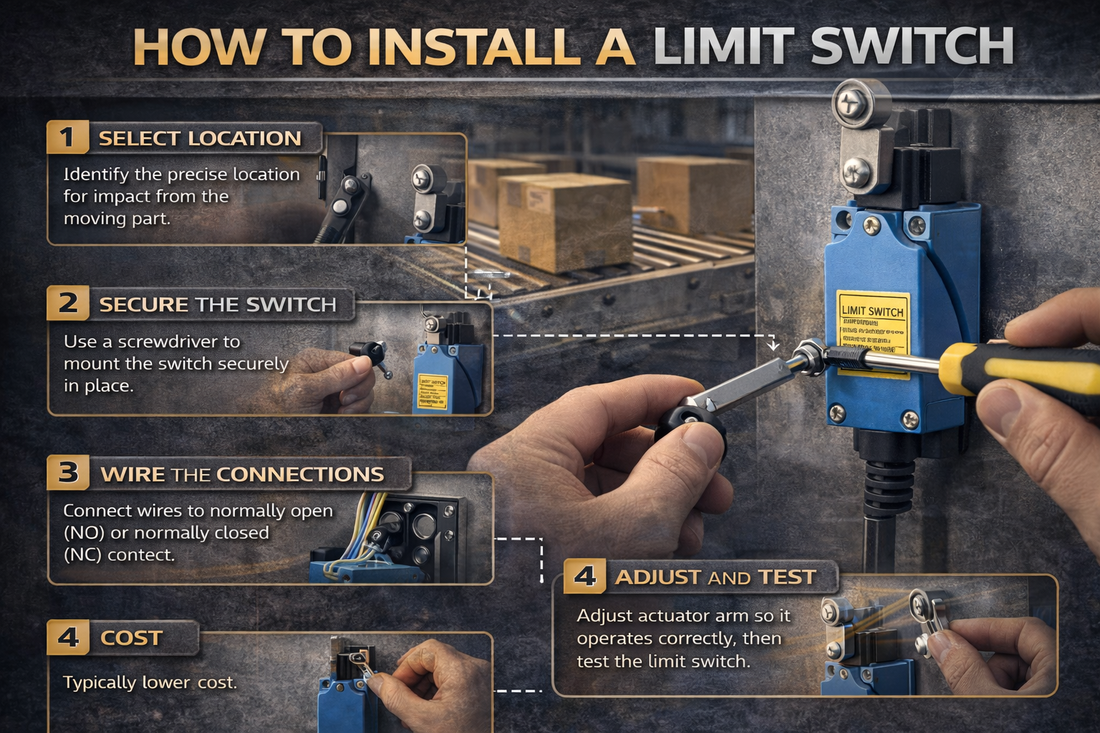

How To Install Limit Switch

A limit switch is not just the one with balls into basketball games, but an essential part of many electronic and mechanical systems. They are needed to insure the machinery is working properly by detecting the right position of the moving parts. The automation system allows the machine to be operated without errors, enhancements or security problems to users when they are different industrial or home settings. If you are just beginning to set up limit switches, this is a guide that will take you step by step to the correct path, thus you did the very first step in an easy way.

Explanation of Limit Switches

The first thing that you need to do before installing a limit switch is to know what a limit switch is. A limit switch is a piece of gear that a plunger is attached to mechanically which is connected to the contacts. Once the lever has engaged the moving part, the switch can be made to switch its state - it can be either shutting down the electrical circuit by opening it or by closing the circuit. A quick abort or redirection of motion is a must in a CWEF where this is effected. As a trusted Electrical Power Tools Manufacturer in India, we provide reliable industrial electrical components and automation solutions designed for safe and efficient machine operation.

Types of Limit Switches

• Lever Actuated Limit Switch: It is an actuator that is made to move the switch by moving it. Good in the situations when direct contact has to be made with the moving object
• Plunger Actuated Limit Switch: Device having a plunger to detect motion thus can be used for linear movement.
• Rotary Limit Switch: It is composed of a rotating actuator which is used to detect angular movement.

Tools and Materials required

On the lighter side, the right tools and materials are imperative to facilitate the installation process. Get yourself these essential items from a trusted Crimping Tool Manufacturer in India to ensure safe, accurate, and efficient electrical installation work :

• Screwdrivers set (both of them slot and PZ type)
• Drill with the compatible drill bits
• Wire Strippers and Cutters
• Multimeter for testing
• Mounting screws or bolts
• Electrical tape
• The limit switch
• Protective gloves and safety goggles

Step-by-Step Installation Process

1. Selecting the Proper Location

Make sure you choose a proper place for the limit switch. The following points are to be kept in mind:

• Specify the exact point where the movement needs to be made.
• Be certain that the actuator can comfortably come in contact with the moving part.
• Consider the environmental issues that might affect the performance of the switch such as dust and moisture.

2. Preparing for Installation

Preparation is a key. Otherwise, the bolt will still be there. In the following order you are to:

• Turn off all machines that are supposed to be and lockout-tagout the system so no one can start it by accident.
• Use your personal protective devices (PPE) such as gloves and goggles to keep yourself from electrical dangers.

3. Mounting the Limit Switch

After the safety measures are implemented, mounting the witch can be the next step with the following instructions:

• Set the limit switch so the actuator can interact with the target freely and smoothly.
• In the case when it is absolutely necessary, drill pilot holes which serve as a mark for mounting screws or bolts.
• Put the switch in position using the adequate fasteners. Be sure the mounting is steady and devoid of excess vibration.

4. Wiring the Limit Switch

Proper wireing is the basis for a lockout switch to work properly. You have to follow the following steps:

• Reffer to the wiring diagram given by the manufacturer for details of terminal connections.
• Cut the ends of the wires off and connect to the terminals you want to join.
• Join the wires to the main terminals on the switch (normally open (NO), and normally closed (NC)).
• Secure the connections firmly to avoid their getting loose.
• Twirl the connections with electrical tape to increase the insulation.

5. Testing the Installation

Mission accomplished! The final thing to do is to check the system operation before finishing the installation of a limit switch. Here are the actions you need to take:

• Restore the power to the system.
• Use a multimeter to check for any loss (circuit closes or opens at the right time).
• Manually press the actuator button to check whether the switch responds properly in detecting movements and sends the right information to the related system.

6. Final Adjustments and Safety Confirmations

The final part of the job is testing and correcting if there are any deviated specifications. In the following parts you have to:

• Review the actuator's position so that it touches the moving part of the machine.
• Additionally, double-check the place of wiring connections.
• Also, see immediately what might be in the way with the actuator’s movement so that it doesn’t obstruct.

Routine Maintenance and Troubleshooting

For example, to prolong the life of the limit switch and be sure your system is still the same as when you bought it; regular maintenance and checking are the best ideas. The plan should be as follows:

• Look for broken actuator and switch body.
• Inspect the tightness and cleanliness of the connections to prevent corrosion.
• Periodically check whether the switch works or not which might indicate the need for replacement to be anticipated.

Regarding practical aspect troubleshooting, you might consider:

• If the switch does not respond, check actuator alignment if triggering is correct or not.
• Hold straps or screws that are damaged so as to restore the attenuation isolation of the wires or the connection.
• Use a multimeter to check circuit continuity and locate open circuits and other electrical faults.
