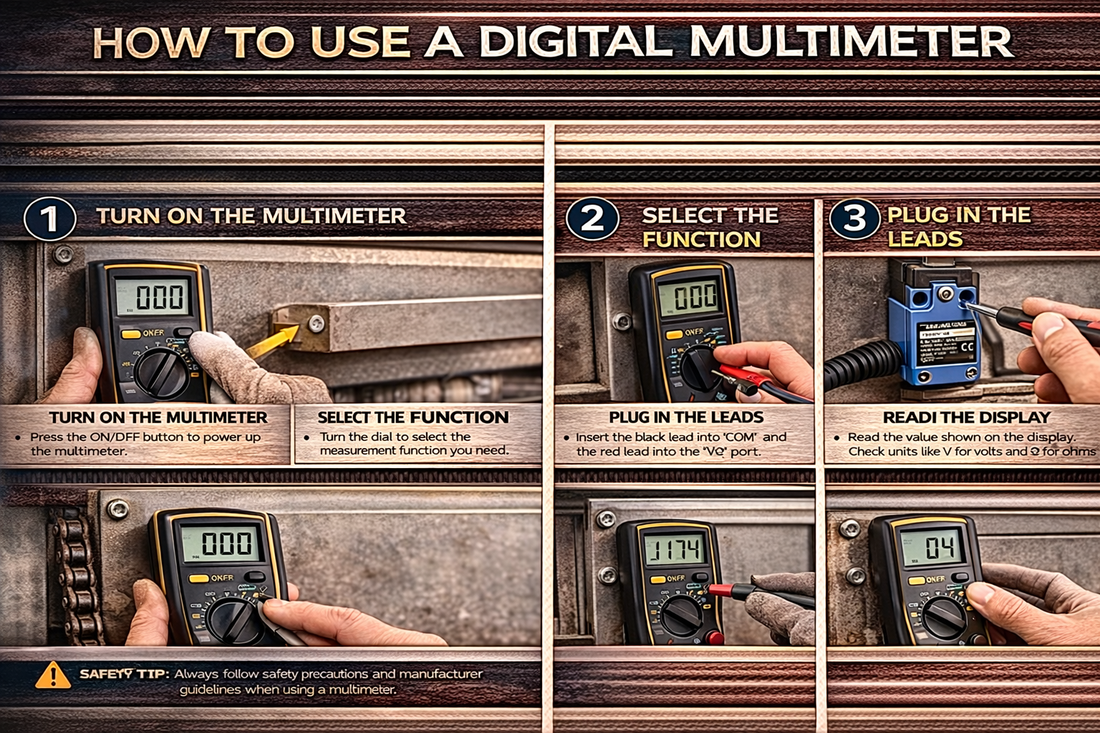

How To Use A Digital Multimeter

All electronics troubleshooters, they call a digital multimeter by the name DMM is a unique tool. It is a very useful tool to technicians and engineers for diagnosing electronic circuits and products, also known as multiviters, with the voltage, current, resistance, and temperature factors. But with features like measuring voltage, current, resistance, and other parameters, console it with the analog versions. Also it is much easier to finish tasks that request more data with its functions such as resistance, continuity, and voltage. On the other hand rather if you want to make me a stand-alone. Such is not the case with me; a digital multimeter can assist me for the purpose of learning and teaching in a laboratory. This manual is all you need to master the digital multimeter, ranging from the fundamental to the highly advanced concepts that require deep understanding and skill.

Understanding the Digital Multimeter

Before explaining any use of DMM, one should be familiar with what a digital multifunction (aka multimeter) really is and how it carries out its functions. A Digital Multimeter combines all these functions like voltage (volts), current (amperes), and resistance (ohms) on a digital screen. On a single display, such a device provides the opportunity to view the measurement of more than one of these quantities. Some digital multimeters would display the measure of the parameters automatically. If they don't, they would have to be selected from the menu.

Components of a Digital Multimeter

• Display Screen: This is where all the readings are captured.
• Dial/Function Selector: By picking different modes and ranges, this module operates.
• Ports/Terminals: The inputs where, usually marked as VΩ (for voltage and resistance reading) and COM (ground in the case of common) the probes are to be inserted.
• Probes/Leads: The manipulate wires such as the red (positive) and black (negative) used for circuit testing.

Basic Functions of a Digital Multimeter

There’s a range of basic maneuvers like the ones I have listed below:

1. Measuring Voltage

Steps to measure voltage:

• Turn the dial on the right to the type of voltage you want to read: be it either AC (alternating current) or DC (direct current). Suppose you check your outlets, the AC setting would be used and if you test, the battery is connected to the DC setting.
• Insert the black probe into the COM port, and the red probe in the VΩ port.
• Link the probes to the circuit: one to the negative and one to the positive terminal or wire of the component.
• Make the voltage measurement by reading the value on the screen.

2. Measuring Current

The current must be in the form of pairs of conductors and a sensor or an observer that measures the current.

Steps to measure current:

• Locate the ‘A’ segment for amperes on the multimeter, and then select the appropriate current type (AC or DC).
• Besides the ‘COM’ terminal, also place the red probe in the mA or A port; choose the mA port if the current is small and the A port if it is greater than 400m..
• Connect the multimeter in series with the circuit which means the current will flow through the meter.
• The current display of the detected current can be found on the screen, which should be in range.

3. Measuring Resistance

It is the resistors that regulate the flow of current in circuits, making sure that the voltage is at the right level. To measure and fix a circuit, the resistance measurement is very important

Steps to measure resistance:

• Choose the Ω symbol on the dial for resistance.
• Into the COM and VΩ, black probe and red probe are inputted respectively.
• When quiescent, disconnect the supply of electricity to the circuit to avoid the meter can be damaged or the wrong readings can occur.
• Connect the probes in parallel with the component or conductor across which you want to measure the resistance.
• The number of ohms should be included in your resistance reading on the line with the symbol Ω.

Advanced Functions of a Digital Multimeter

Besides the basic characteristics, there are many additional features implemented in the digital modern multimeter may be equipped with, to make your work more efficient and convenient:

1. Continuity Testing

An audible beep is an indication of either an intact circuit path or no circuit at all that saves the circuit troubleshooting work a lot, due to its sound signalization of open circuits.

Steps for continuity test:

• Select the continuity test mode on the dial, represented by a diode symbol or sound wave icon.
• One should ensure that the circuit has no power on it to prevent unwanted noises or damages.
• The multimeter’s tone will confirm that the circuit is good, and a beep will be heard.

2. Capacitance Measurement

Several DMM models can also evaluate capacitors, which are one of the classic components present in AC circuits that influence the proper operation of electronic equipment. As a reliable Electrical Power Tools Manufacturer in India, we provide advanced testing tools and electrical equipment designed for accurate diagnostics and efficient industrial applications.

Steps to measure capacitance:

• Set the capacitor to its capacitance setting [it is where the ‘-||-’ sign is mostly].
• Ensure the capacitor is fully discharged while not being connected to any power source.
• Connect the probes at the terminals of the capacitor.
• Charge the measurement in the display and look for the measured capacitance.

Safety Measures When Using a Digital Multimeter

Aside from performance, safety is another imperative that no NDT operator can afford to overlook. It is of utmost importance to note the following:

• Always start with the highest range available to ensure the measured quantity doesn’t surpass the multimeter’s limits.
• Use gloves and insulating tools to prevent hazardous electric shock, mostly in the case of high voltage systems.
• Before carrying out resistance or continuity measurements, power sources must be switched off, probes must be checked for open circuits, and one of the leads is disconnected from the circuit.
• Make sure the probes are not exposed, and there is no wire blisters that could trigger shorts or open circuits
• Be aware that the location of a multimeter in a circuit affects the meter’s functionality and the right connection of the meter DC-wise!

Tips for Choosing a Digital Multimeter

It is indeed like going through a maze in the market to select a DMM from a myriad of models. Here are things you need to consider:

• Usage Purpose: In case of professional use, the company should get a multimeter with the most robust construction and the broadest list of features.
• Measurement Range: Buy yourself a meter where the range supported extends over the limits of the measurements involved in the job at hand.
• Input Protection: Good quality meters are safe because of the additional fuses in programs for, say, high voltage and current.
• Display Features: Displays that are optimally legible and can even be read in dimly lit scenarios are preferred. This could include a backlight.
• Budget: Keep in mind the budget limit while making a list of the most important features and applying the product to the task.


Making use of a multimeter with skill and confidence is a fundamental skill that should be mastered by everybody involved in the field of electronics. Through the acquisition of the required know-how via this handbook, one should be well able to negotiate the different fields, paramount to understanding the different uses, features, and safety precautions requisite to a multimeter. That is the reason I am to be a lambda instrument for knowing, practicing and perturbing. Safety is key while working with electrical systems; thus, you have to make sure that the chosen multimeter meets your specific needs as well as limitations.
